About this plan

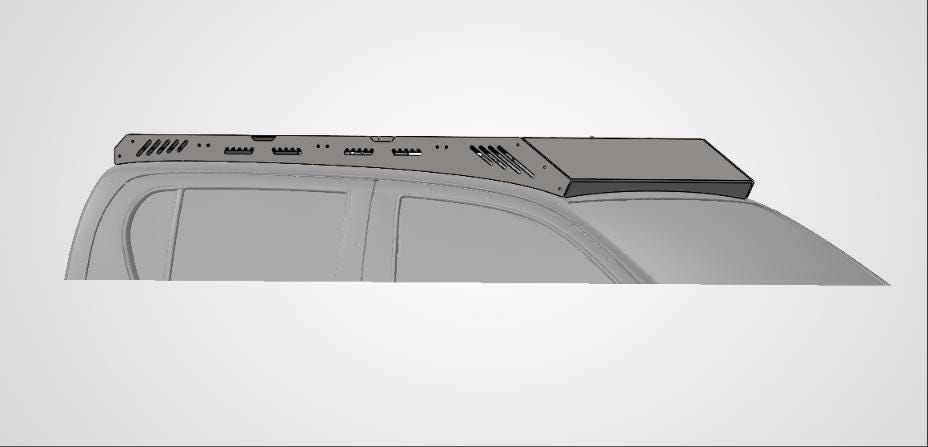

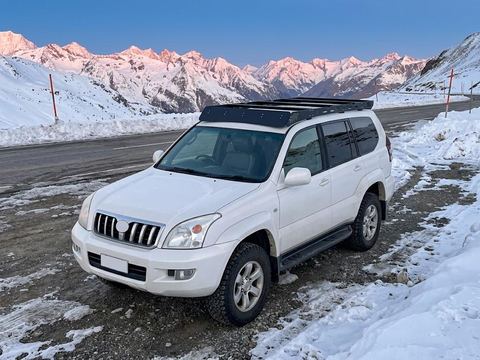

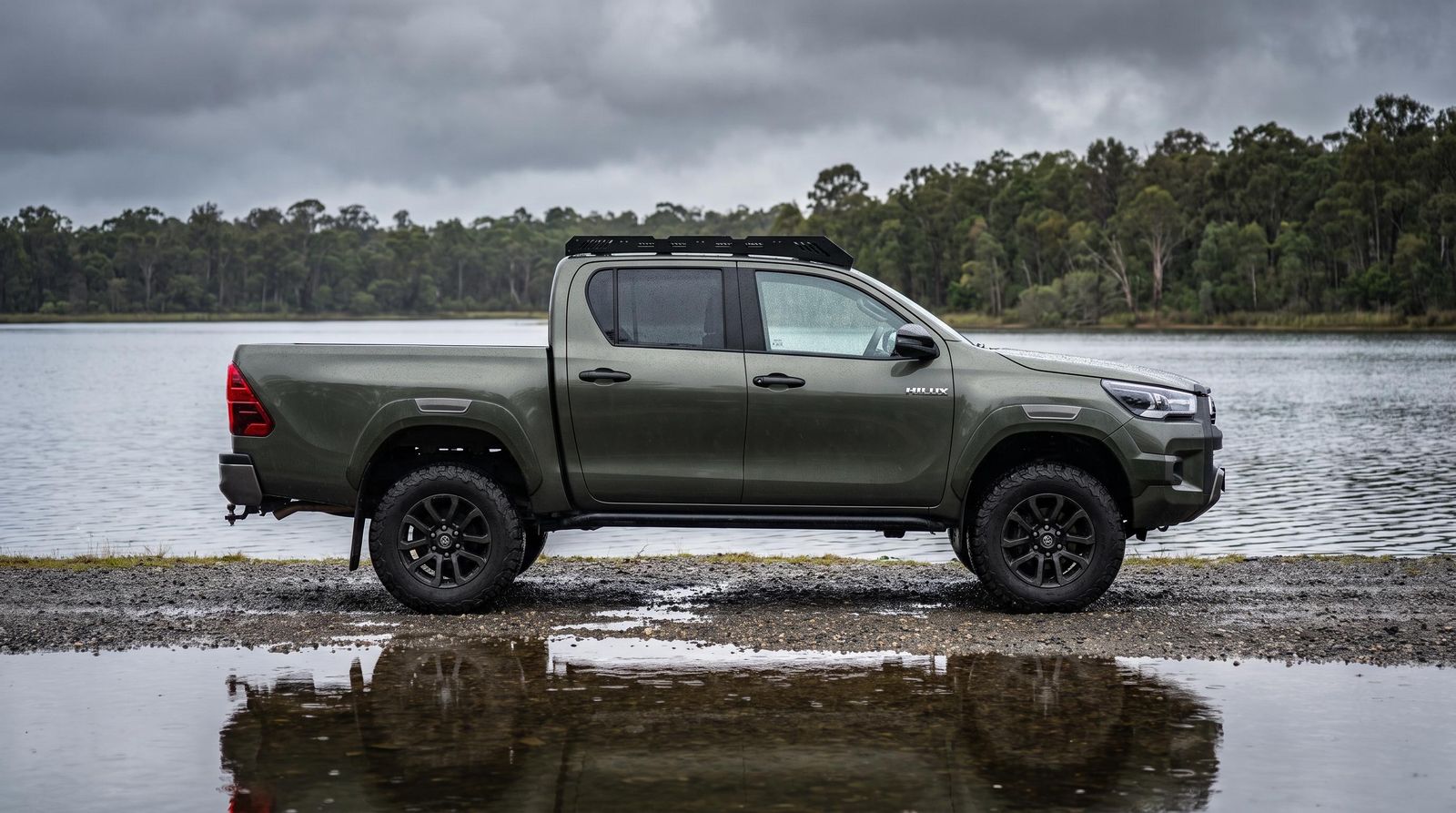

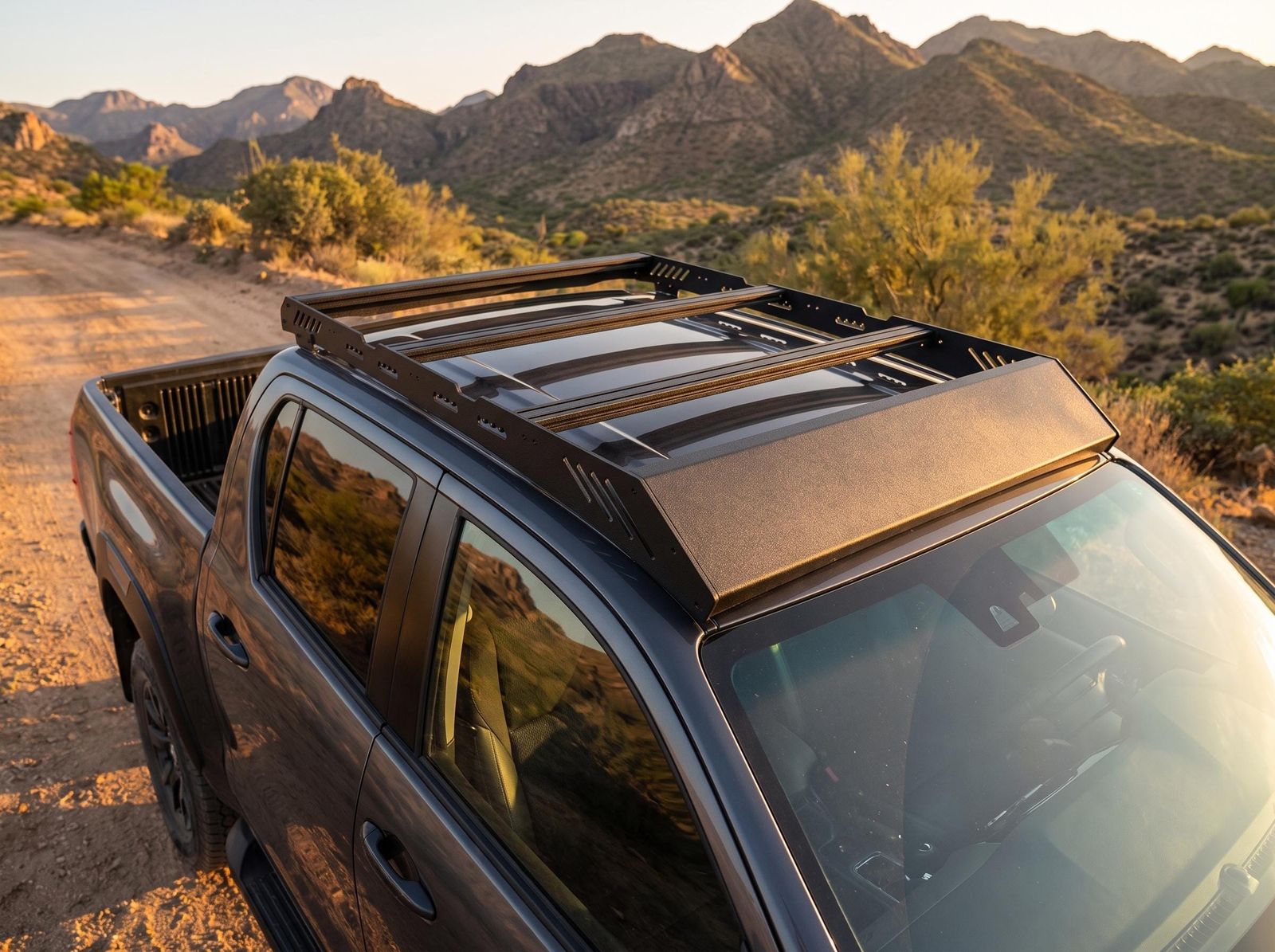

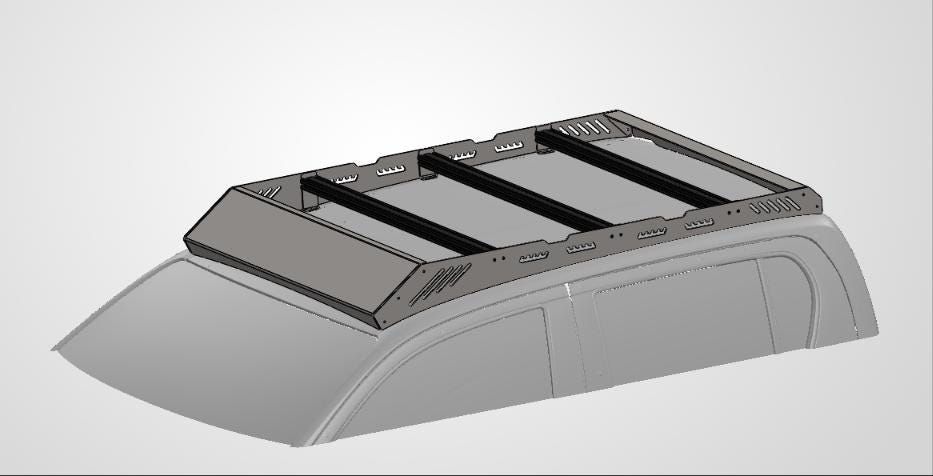

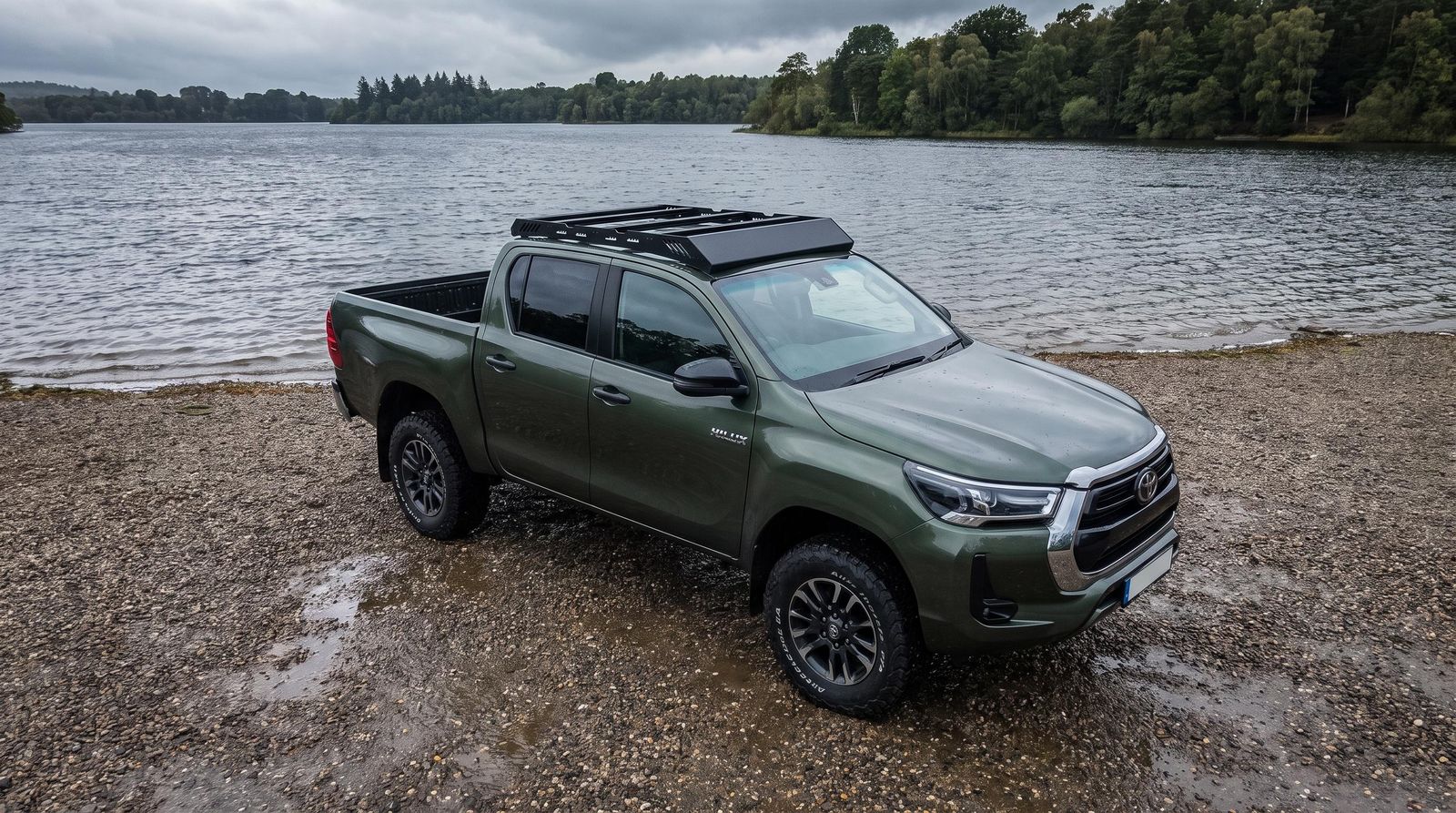

A low-profile, bolt-together platform rack that follows the cab roofline, with an angled front wind deflector. Cut every sheet-metal part on a CNC plasma or laser and assemble it with standard bolts: no welding.

This is a DIY plan: check fitment and load capacity for your own vehicle and use before cutting.

What you get

• 6 DXF files for all sheet-metal parts: 2 side rails, front wind deflector, rear panel and 6 L mounting feet in 3 sizes
• 5 PDF drawings for the bent parts: flat patterns, bend lines and dimensions
• Package and assembly guide (PDF) with parts and hardware lists
