About this plan

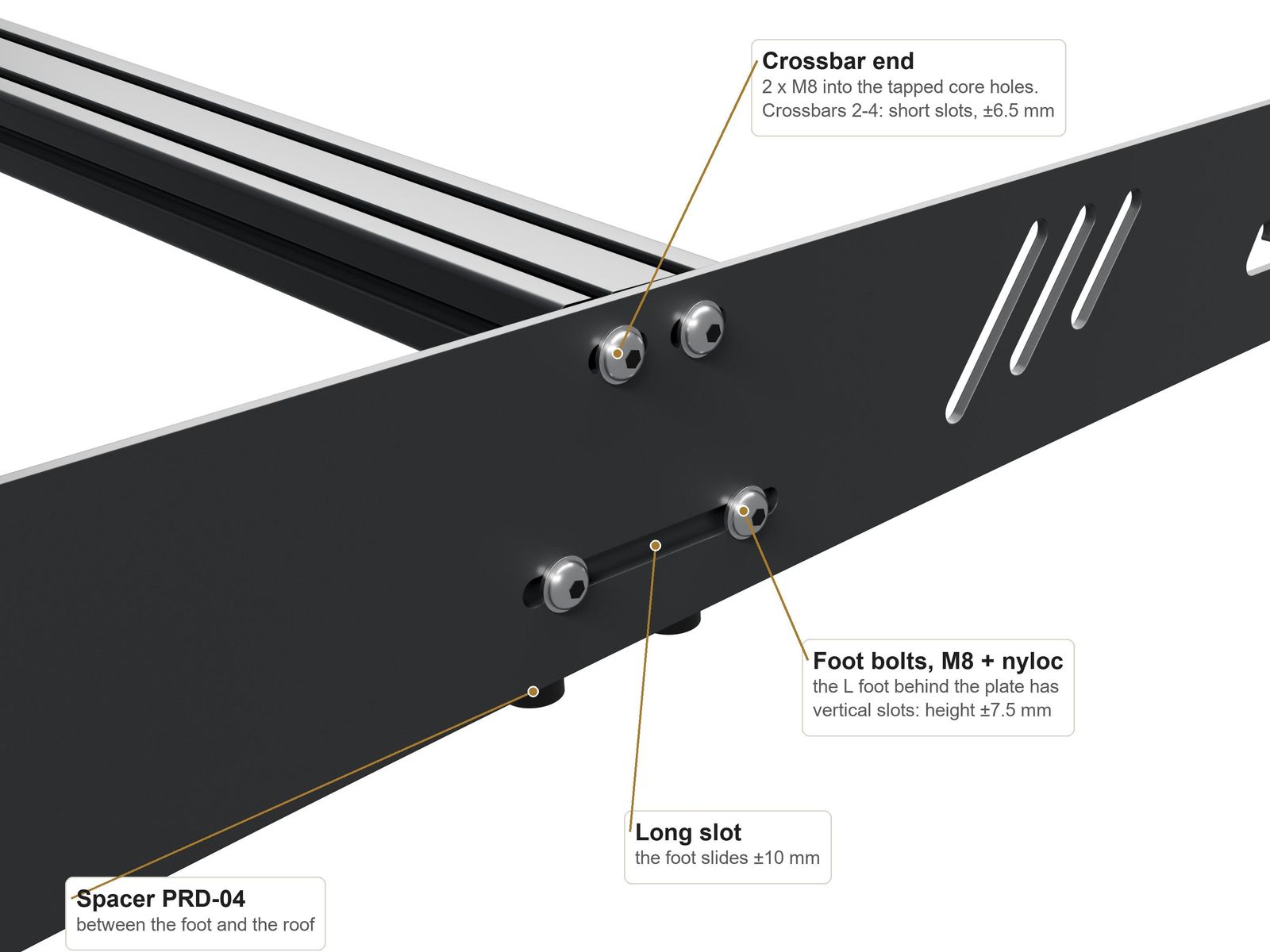

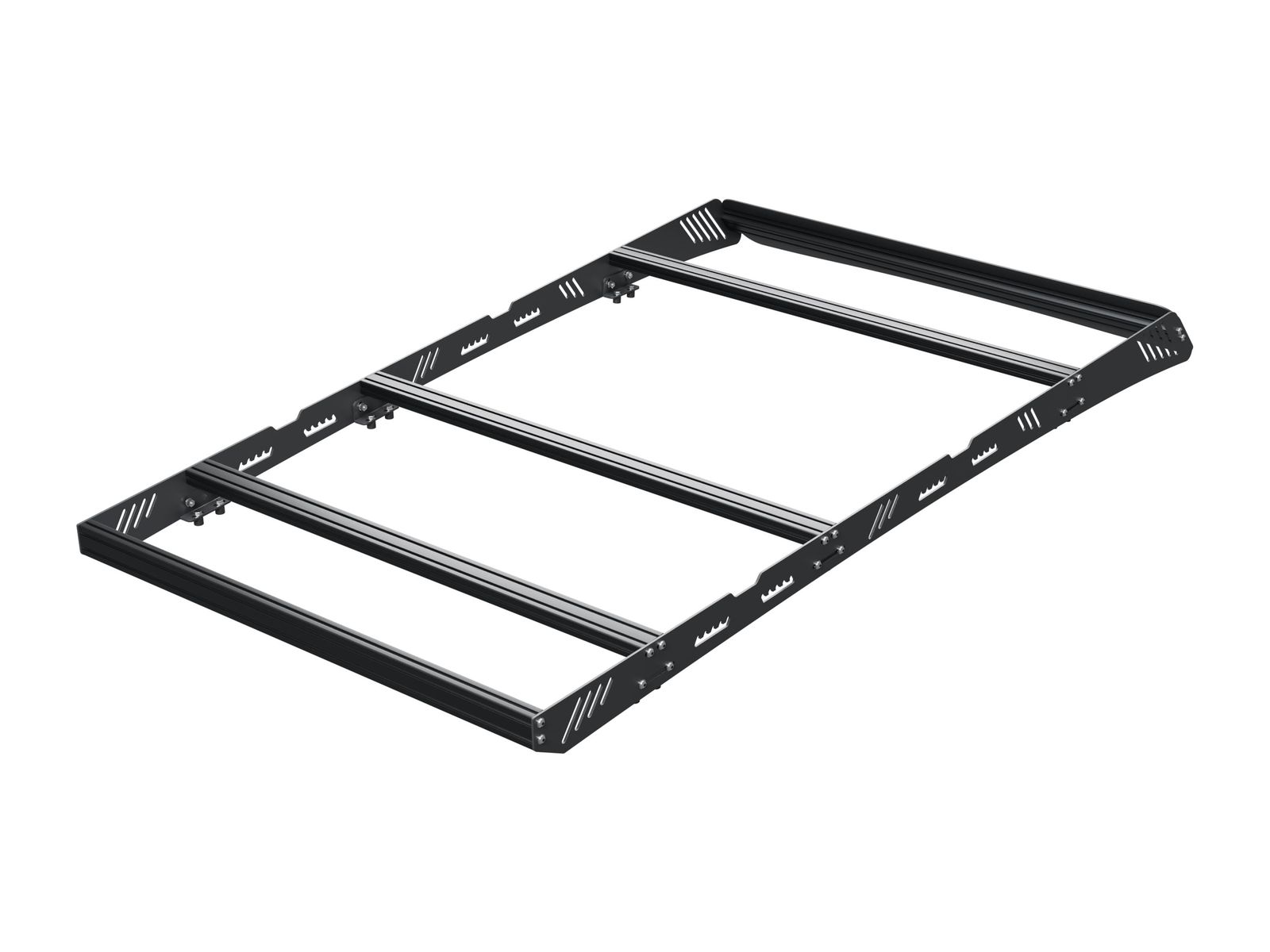

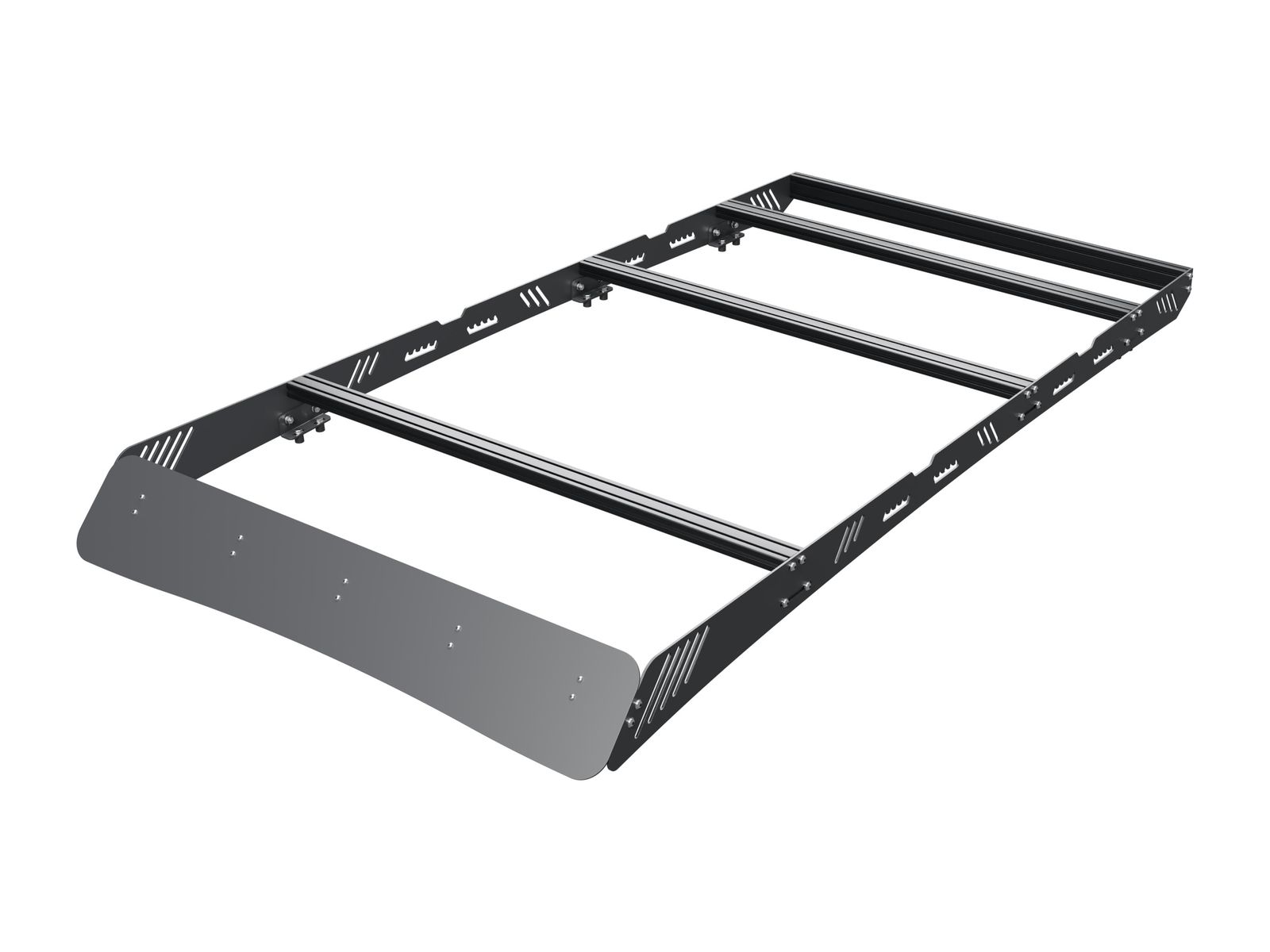

Two CNC-cut steel side plates, five bolted aluminium T-slot crossbars and an angled wind deflector. The rack bolts to the factory roof-rail mounting points with six adjustable feet: no welding.

This is a DIY plan: check fitment and load capacity for your own vehicle and use before cutting.

What you get

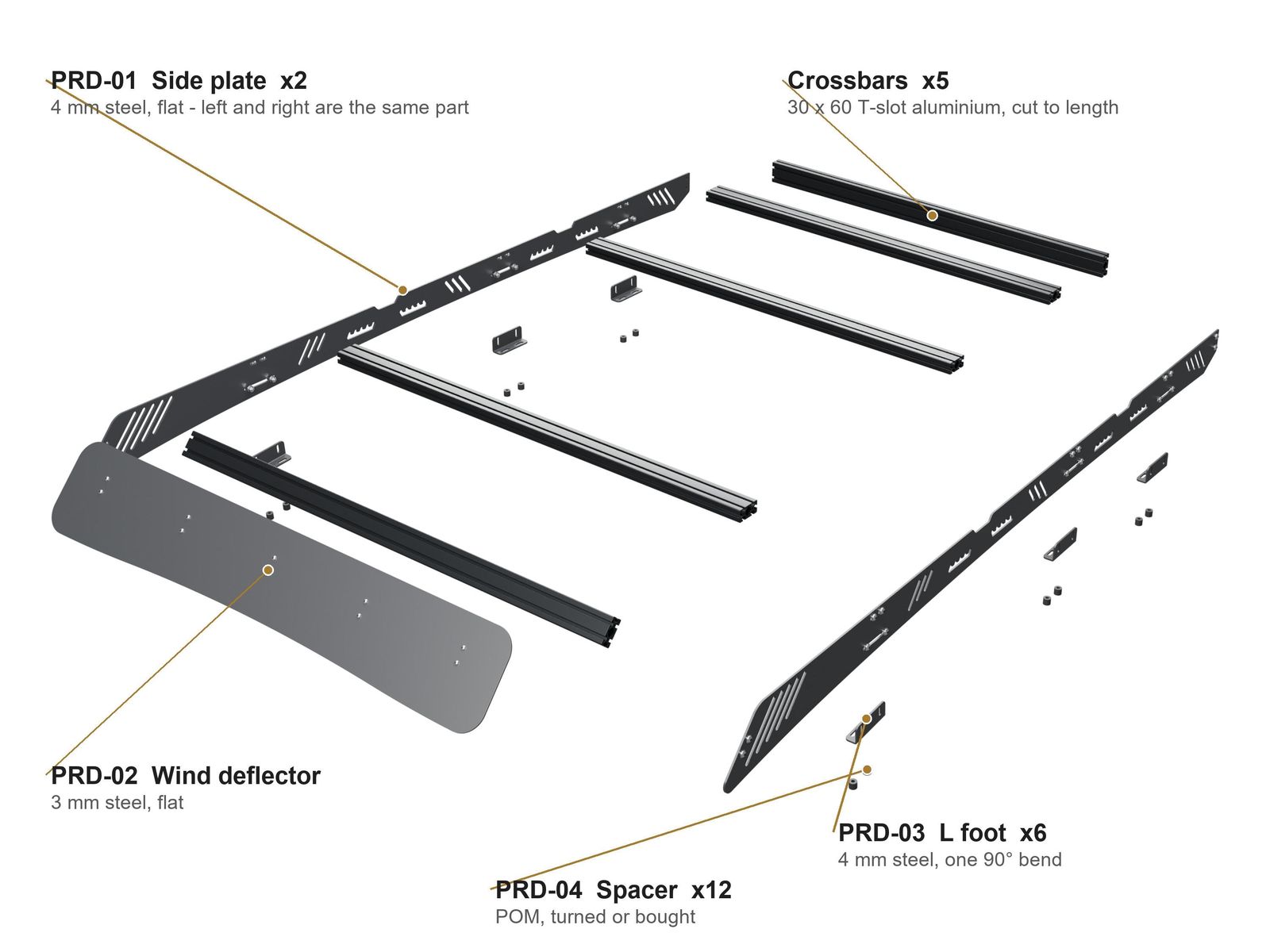

• 3 DXF files for all sheet-metal parts: side plate (cut 2), wind deflector, L foot (cut 6)
• PDF drawing of the bent foot with its flat pattern and bend note
• Illustrated cutting and assembly guide (PDF, 10 pages)
• Cut list (XLSX) with the five crossbar lengths and every bolt
